In today’s connected vehicles, communication protocols form the backbone of how sensors, ECUs, and networks interact. While Ethernet and CAN are the dominant players, the SENT protocol (Single Edge Nibble Transmission, SAE J2716) quietly powers critical sensor-to-ECU communication.
This article explores SENT, the need for gateways, and how modern SENT–CAN/USB solutions enhance intelligence in sensor data handling for automotive systems.
SENT stands for Single Edge Nibble Transmission, a protocol specifically designed for sensor data transmission. It is used extensively in vehicle powertrains and systems requiring precise, reliable digital interfaces. SENT is a unidirectional protocol, meaning it only transmits data from the sensor to the Electronic Control Unit (ECU).
For example, SENT is used in throttle and pedal position sensors to send accurate position data to the engine control unit. This ensures optimal engine performance. SENT is also employed in pressure and temperature sensors, which monitor critical engine parameters. These applications demonstrate its versatility and reliability.
The advantages of SENT include low hardware costs and resistance to interference, which is crucial in automotive environments. This makes it an ideal choice for high-resolution data transmission where cost and reliability are key considerations.
The SENT protocol uses a specific structure to ensure efficient data transmission. A SENT message is 32 bits long, with distinct sections that encode data via time intervals between voltage edges.
The frame's structure ensures accurate, high-resolution sensor data transmission. Its design minimizes errors, which is vital for maintaining vehicle performance and safety.
In a basic SENT (Single Edge Nibble Transmission) implementation, the physical layer is kept deliberately simple. It uses just three lines:
On the signal line, information is represented as voltage levels. If the voltage drops below 0.5 V, it is recognized as a logic low; a voltage that rises above 4.1 V is considered a logic high.
As vehicles become more complex, integrating different communication protocols is essential. Gateways like SENT-CAN and SENT-RS232 are crucial for bridging these protocols, allowing seamless data flow across systems.

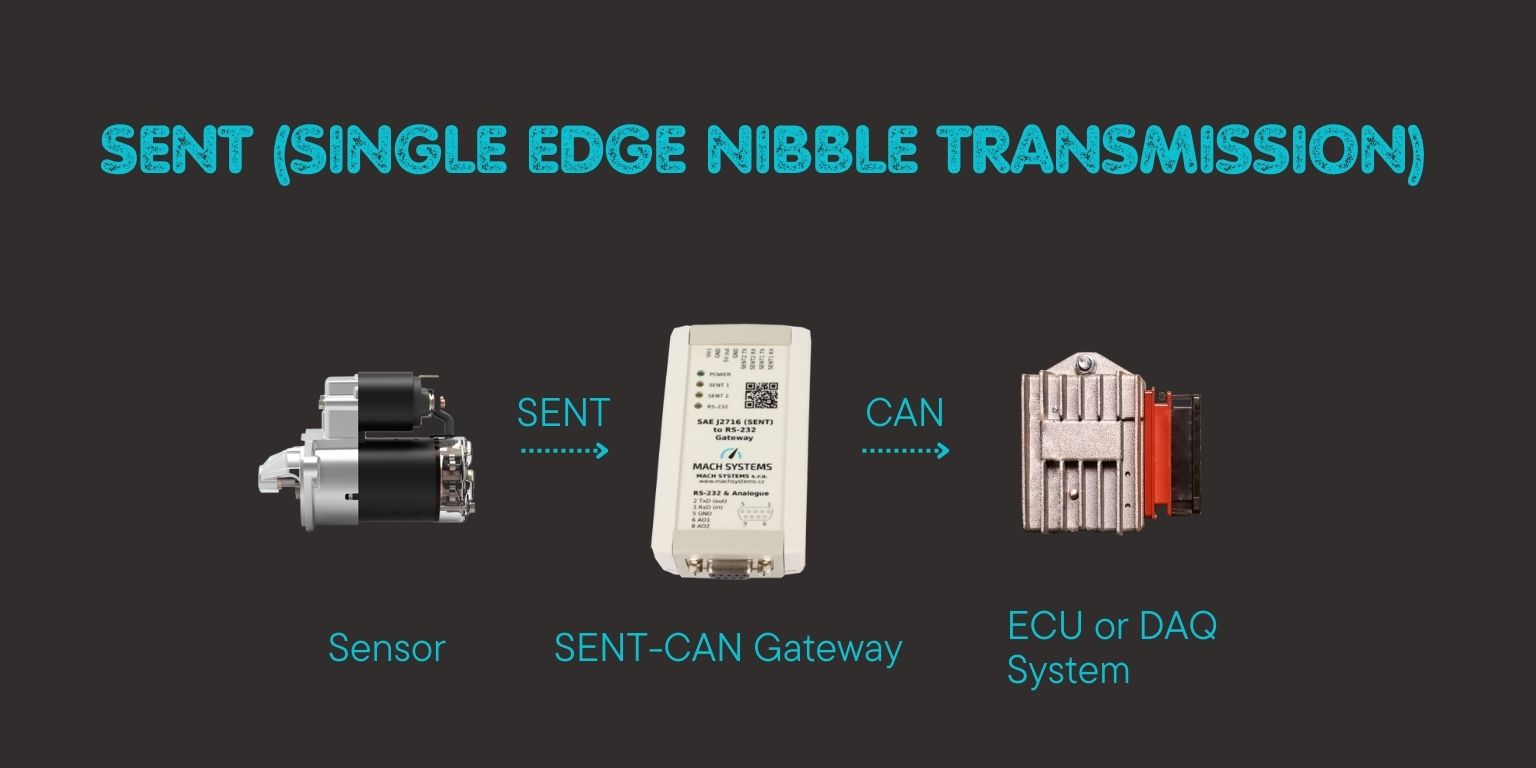

SENT-CAN gateways are vital in linking SENT protocol data with the broader vehicle CAN network. These gateways receive high-resolution data from SENT sensors and convert it into CAN messages, which are then distributed across the vehicle's network or Data Acquisition system for further diagnostics.
In practice, this means data from SENT sensors, such as throttle positions, can be accessed by other systems on the CAN bus. This data integration is crucial for systems that rely on comprehensive data to function optimally.
The key benefits of SENT-CAN gateways include:
SENT-RS232 gateways convert SENT protocol data for use in serial data transmission systems, like RS-232. This is particularly useful in testing, diagnostics, and development environments where real-time data analysis is needed.
For engineers, these gateways provide a way to log and analyze sensor data through a computer. This enhances the development and troubleshooting process, ensuring systems function as intended.
The advantages of using SENT-RS232 gateways are:
The benefits of using gateways like SENT-CAN and SENT-RS232 include increased network flexibility and enhanced data accessibility. These gateways provide a crucial link between different communication protocols, allowing seamless data exchange:
Bridging SENT with CAN and RS232 is essential for creating integrated automotive systems. This process involves converting SENT data into formats compatible with other networks.
Steps to bridge SENT with CAN and RS232:
This bridging process enhances communication, enabling better system integration and functionality. For more information, you can visit this page.
Overall, these gateways are crucial for modern automotive systems, enabling seamless integration and enhanced communication across different protocols.
In labs, the integration of SENT sensors with CAN networks through SENT-CAN gateways can offer substantial practical benefits. Particularly in scenarios such as an engine monitoring project, these gateways enable seamless data acquisition necessary for precise engineering analysis.
If your DAQ lacks native support for SENT, the SENT-CAN module provides a straightforward solution. The gateway efficiently translates the data from the SENT sensors, converting it into CAN messages that the DAQ could process. This setup would be crucial during field trips, where real-time monitoring of parameters such as pressure and temperature will be essential.
The key advantages of leveraging SENT-CAN gateways in your lab would include:
By utilizing these gateways, your lab can respond swiftly to bespoke measurement requirements, ensuring precise data collection and facilitating comprehensive analyses. This capability not only aligns with standard practices but also enhances your adaptability in dynamic automotive research environments.
As automotive technology continues to evolve, the role of SENT-CAN and SENT-RS232 gateways is poised to expand further, supporting more advanced and interconnected vehicle systems. The adoption of SENT in emerging vehicle platforms—such as electric vehicles (EVs) and autonomous vehicles (AVs)—underscores its growing importance. These platforms demand highly accurate and reliable sensing technologies to function optimally.
Emerging Applications and Trends:
In conclusion, SENT-CAN and SENT-RS232 gateways are not just bridging the gap between communication protocols; they are laying the groundwork for the future of automotive technology. By facilitating robust integration and data exchange, these gateways not only improve current vehicle systems but also pave the way for innovations in EVs, AVs, and more interconnected automotive landscapes. As the industry shifts towards more intelligent and more sustainable solutions, these gateways will remain critical components in the ongoing evolution of vehicular technology.
