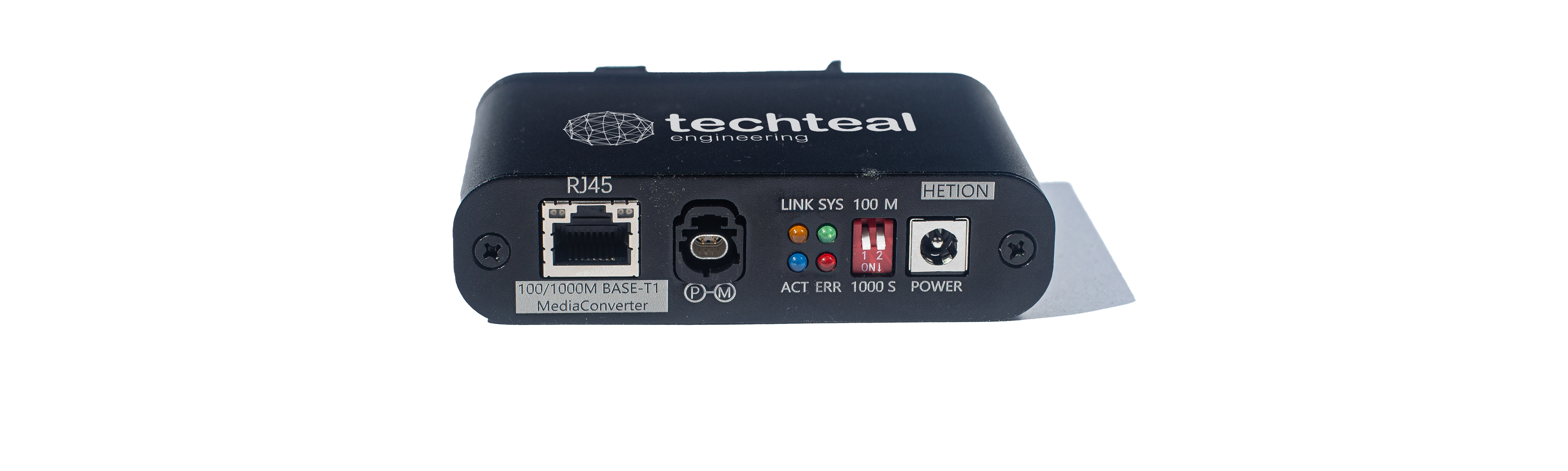

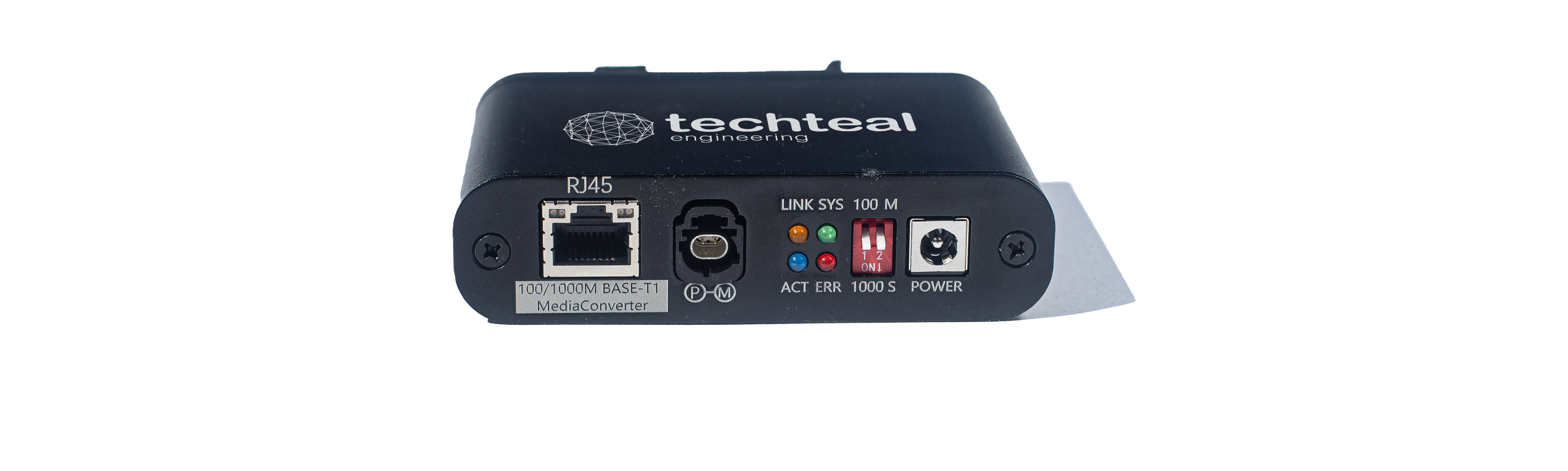

The Hetion 100/1000Base-T1 Media Converter is a high-performance, industrial-grade communication adapter specifically designed for the development and testing of Automotive Ethernet networks. This device supports bidirectional data conversion between 100/1000BASE-T1 and standard Ethernet (RJ45), making it an ideal solution for a variety of applications, including ECU joint debugging, autonomous driving sensor calibration, vehicle network testing, and laboratory simulations.
With its compact structure, automotive-grade protection, and plug-and-play functionality, the Media Converter can be directly deployed in Automotive Ethernet environments without requiring additional driver support.
Power Supply
DC 12V (Operating Range: 6V - 36V)
Power Consumption
≤2W
Connectors
1x 100/1000BASE-T1 (H-MTD or MATEnet)
1x RJ-45
1x Barrel Jack Connector or DC Power Jack
PHY
Marvell 88EA1512 B2
Supported Protocols
IEEE 802.3bw (100BASE-T1)
IEEE 802.3bp (1000BASE-T1)
IEEE 802.3ab (1000BASE-T)
Operating Temperature
-40°C to +85°C
Protection Rating
IP20
Housing Material
Aluminum Alloy
CE & EMC Compliance
Yes, see Certificate of Conformity below
Dimensions
100 mm x 65 mm x 26 mm
Weight
170 g
Warranty
24 months

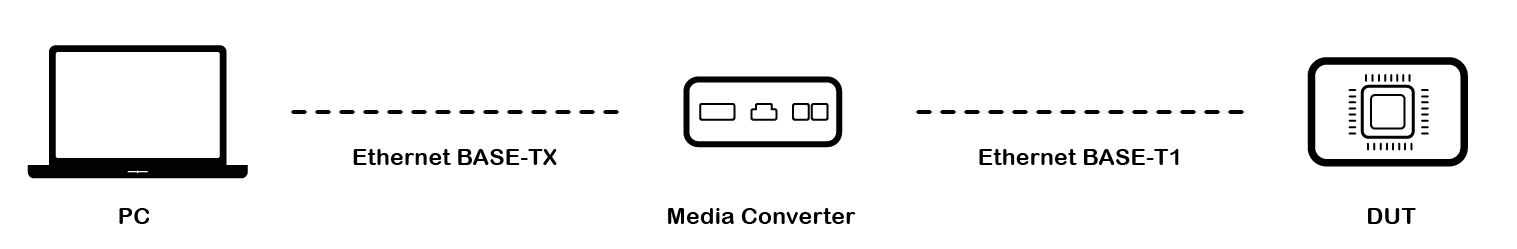

Seamlessly converts data between 100/1000BASE-T1 and standard Ethernet BASE-TX (RJ-45)
PTP (IEEE 1588v2) & gPTP (IEEE 802.1AS)
Built to withstand demanding automotive environments
No additional drivers required for deployment
Ideal for ECU joint debugging, autonomous driving sensor calibration, vehicle network testing, and laboratory simulations
Featuring a compact structure and an aluminum alloy housing
Insert the T1 data cable into the H-MTD or MATENet connector, ensuring the latch is securely in place
Insert the Standard Ethernet cable into the RJ45 port until you hear a click
Connect the DC plug, ensuring correct polarity (+12V center pin, GND to housing)
DIN rail mounting clips are included for various testing environments.
Dip switch left - up
Dip switch left - down
100
1000
100 megabits per second
1000 megabits per second
Dip switch left - up
Dip switch left - down
M
S
Master
Slave
SYS
Blinking
Normal power supply
LINK/ACT (1000M)
Blinking
Normal network connection
LINK/ACT (100M)
Steady LINK + Blinking ACT
Normal network connection
ERR
Steady On
Interface error or communication failure
Note: Master/Slave mode and communication rate can be adjusted while the converter is in operation. New settings take effect immediately.
IEEE 802.3bw (100BASE-T1)
IEEE 802.3bp (1000BASE-T1)
IEEE 802.3ab (1000BASE-T)
Supports advanced timing protocols: PTP (IEEE 1588v2) & gPTP (IEEE 802.1AS)
Before operating the device, read this manual thoroughly and retain it for your reference. Use the device only as described in this manual. The operator/user of these devices must take measures for the right protection of the power supply lines and the connector. The maximum power consumption of the device is written in this user manual. Do not open the device.
The device may generate heat during operation. Avoid prolonged contact with the metal housing to prevent burns.
The device meets the IP20 protection rating, compliant with GB/T 2423.17-2008
Avoid placing the device near high-power wireless transmitters, AC power transformers, or other strong interference sources.
Warranty is limited to 2 years. Manufacturer liability for damage caused by using the device is excluded.
Warranty and technical product support issues are included during warranty period, all other set-up and configuration is treated as an Engineering Service. Techteal Engineering commit to respond to incoming support issue within 2 work days (following Swedish or Indian business days and hours).
Symptom
No power supply
Verify power cable polarity and voltage, ensure secure DC plug contact
No network connection
Check cable wiring sequence, inspect connector integrity, and replace Ethernet cable
Indicator light inactive
Confirm power connection or suspect hardware failure (contact technical support)
Transmission interruption
Investigate EMI sources, inspect cable degradation, and port connectivity
EN IEC 62368-1: 2020+A11: 2020
CE
HTT202504766LR
April 23, 2025
RoHS 2.0 directive 2011 / 65 / EU Annex II
RoHS
HTT202504766CH
April 23, 2025
GB / T 17626.2 -2018
GB / T4824-2013 IEC 61000 - 4 - 3 - 2020
GB / T 17626.5 - 2019
GB / T 17626.4 -2018
RoHS
HTT202504766CH
April 23, 2025
